Muse65 HE
Muse65 HE
HE Driver
HE Driver
Update time:
11/19/2024
Driver version: 1.0.0.11
Firmware version: 1.12
Updates:
ISO verison issue
Driver Installation
-
Please choose your language to install.
-
Before the driver installation concludes, an environment setup program will appear, as shown in the screenshot below. If this is your first time installing the driver, please click "Confirm Installation." Upon completion, a success notification will be displayed.
- After the initial driver installation, upon the first connection, the driver will automatically detect the firmware version and prompt you to update. Please select the appropriate firmware update for the corresponding layout version.
- Please select the appropriate firmware update for the corresponding layout version.
-
After installing the driver, it is necessary to calibrate the keyboard, and the corresponding position is indicated in the figure below.
The calibration keyboard operation is to long press the button.green indicates successful calibration, while yellow indicates calibration failure. For the initial calibration, ensure all keys are calibrated to green.
After completing the calibration, you can click the calibration button to exit thcalibration. Then it can be used normally.
- The firmware and driver can be upgraded directly through the firmware update button in the driver.
Q: How to change the Driver layout?
A: Open the driver, unplug the cable, hold the ESC key, and plug the cable
Troubleshooting:
1:Unable to use the driver to upgrade the firmware normally;
The driver is stuck in the firmware upgrade interface;
The latest version is still not available after the upgrade
Please try this:
Open the driver, unplug the cable, hold the ESC key, and plug the cable
2:Can't change backlit;
Light are reds
Please calibrate the keys, then you can change the backlit.
Shipping Policy
Shipping Policy
VAT or import tax included?
Due to the customs policy of different destinations, we CANNOT guarantee if there is a tax for you. Our product price does not include VAT or import tax of your shipping destination. Please let us know if the customs reach out for anything, we may provide our suggestion if possible.
European Union VAT
If you are located in the European Union, and your product amount is under €150, we will charge the VAT when you place an order.
Then there is no more tax needed.
If your order amount is over €150, then the local Customs will charge customs duties and VAT.
If you have any questions, please contact us.
Where do you ship from?
- We ship from China.
- Some SKUs will be shipped from the US.
(Minilo 75% Eucalyptus/Bluebell/Retro / Kailh Prestige Silent / ANSI
FK2 5 colors
Switches set - Kailh Prestige Silent 35/55 pcs)
What countries do you ship to?
- Varmilo uses DHL Express to ship the orders.
- We ship to countries that DHL Express services.
- Shipping rates will show when you enter a shipping address on the Checkout page.
When can I receive my order?
- In-stock items usually take 2-5 working days by DHL Express.
- Pre-sale items will have an estimated delivery time marked on the product page.
Payment Method
- Paypal and Credit Card
Can I cancel the order or change the product?
- Yes, unshipped orders can be canceled and product or delivery information can be modified.
Can I change the delivery address of my package after it has been shipped out?
- Unfortunately, we cannot change the shipment once the product is en route.
- But you can contact DHL to change the address.
Limited Stock!
Get it now!
The Magnetic Jade Switch has been upgraded to the Magnetic Jade Switch Pro.
The feel has been improved, the sound is better, and the performance is more stable.
Share

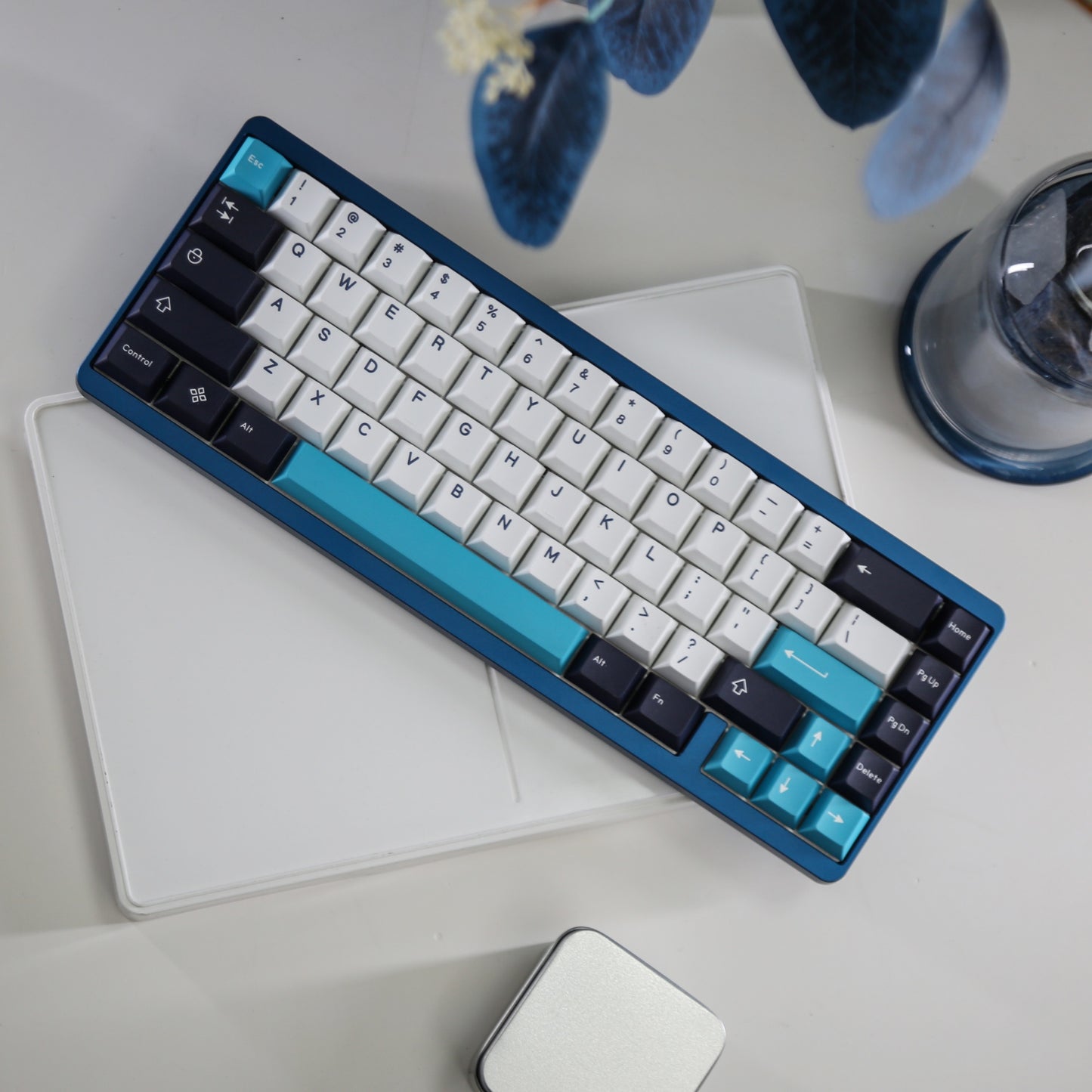

Muse 65 HE Metal Keyboard - Best choice for FPS Players
5 Theme Design

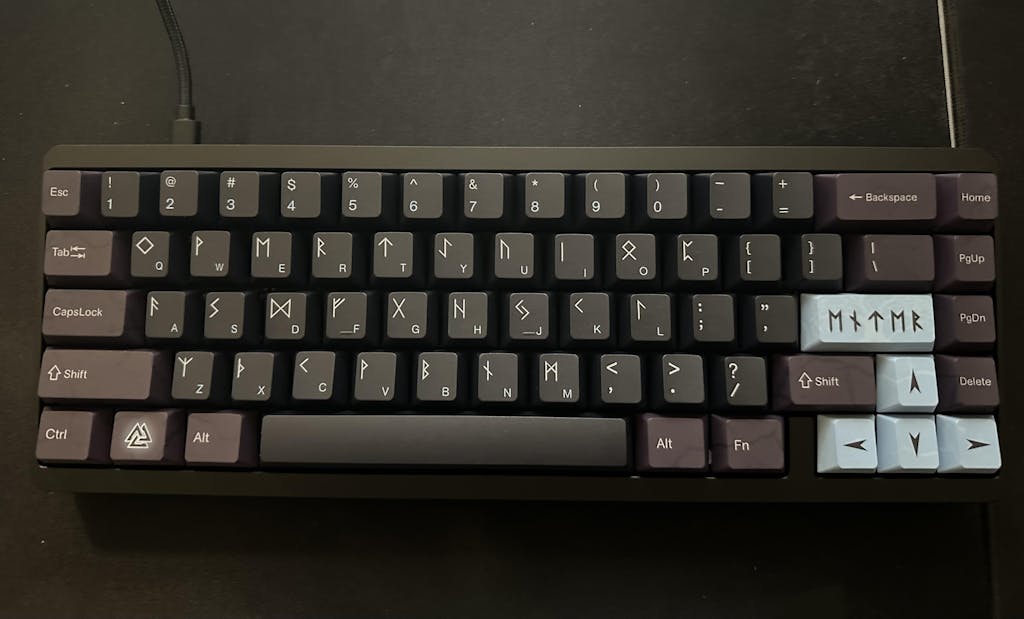

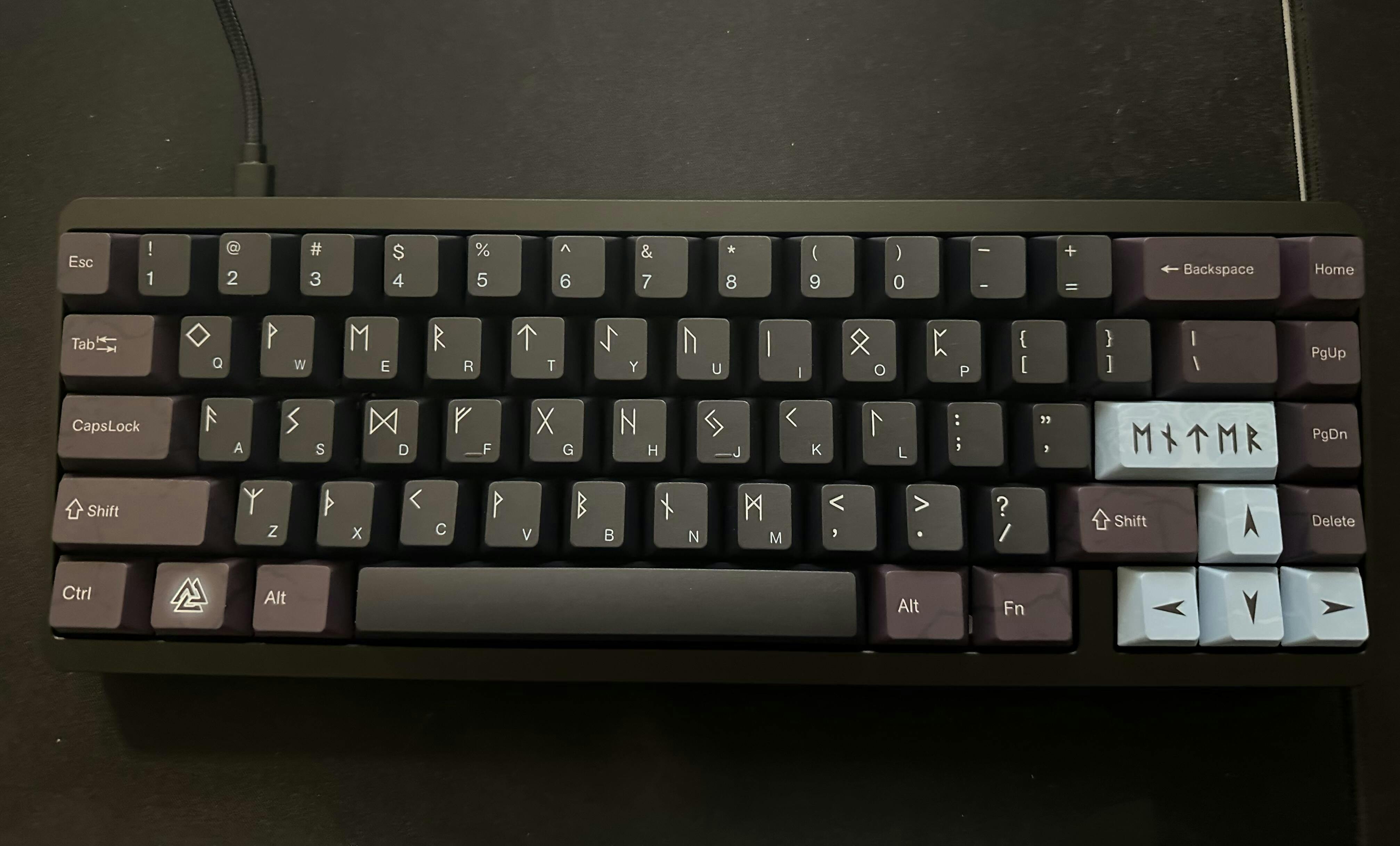

The artworks of natural elements (Ariel, Aurora, Sakura, & Summit ) and Viking style (Asgard).
5 different styles are reflected in the keycaps, metal case and glass plate weight, each one looks great.
With a Fully CNC Metal Case, it feels stable and slightly cool to the touch, delicate and silky, like jade.
If you touch it with your fingertips, you will feel its difference.
Why a magnetic keyboard?
An average human’s reaction time is 300-500ms, while a pro gamer can reach 200ms through training. The total trip time for a key press to register after the finge-cap contact can however easily reach >100 ms, much of it spent on the key descending to the actuation point. A magnetic switch cuts this trip by half by separating the process of actuation, accomplished at the speed of light through the Hall effect, from the tactile feedback, which can take as long as you want afterward to assure your finger of its occurrence. And if you are drawn to extreme performance, then the infamous rapid trigger mode is definitely for you.
Accurate to 0.02mm
0.10mm, 4.00mm, or exactly 0.02 mm...with both high dynamic range and travel resolution Muse65 got your back whether you want to be the fastest gun in the West or tune your rhythm in sync with that particular spell's cooldown timer.
Rapid Trigger
Ready for the next move before the impact of the first even strikes the enemy? Just 0.1mm of break and your trusted companion will get it done, and done again...and again. Under the rapid trigger mode, Muse65 HE can handle even the most complex maneuvering that you can come up with so seamlessly and effortlessly like it is an extension of your nerve system or something.
Dynamic Keystroke
High precision and minimized errors also enable true analog input, as you can now pack a recorded amount of information and up to 4 actions in one stroke. Combos, spellcastings, and macros….can all become chords in the music that follows your finger, whose tempo you will decide among 2 positions out of 40 in the press, and another 2 in the release.
SOCD
Back-cover input
Enhance key priority, upon key release, automatically trigger the previous key, achieving flawless quick-stop functionality.
as low as 0.2ms
The switches are only half of the story, every component in the signal’s pathway from the switch must run reliably at an even higher speed to fully unleash its potential. The requirements are staggering, the specs of the hardware even more so: 8000Hz polling rate and only 0.2ms of total latency from the key activation to its registering….
5 independent Hall Effect chips
Many little, subtle things need to be gotten right before a mere 0.02mm of change in travel can be properly resolved, not just detected. Even slight vibrations can cause big deviations in readings, and so do disturbances in the baseline voltage.
In Muse65 HE, not only did we design the Tray mounting structure, the electronics, and the error-controlling process for every component all around the need to reduce errors and inter-key inconsistencies, but the assembly and testing in the supply chain also need to be managed accordingly.
The <0.01mm error produced by the whole approach makes fine-tuning the actuation distance useful for the users for the first time.
RGB and HE coexist
The race to a lower latency starts when the transverse voltage builds up in the Hall effect sensors, individually packaged and powered from the LEDs they retain their sensitivity even when the RGB effects are maxed out. Similar arrangments at the end of the signals' journey ensure the MCU is at full throttle handling their arrivals, utilizing a self-developed filtering algorithm that picks them at industry-leading accuracy and speed.
VARMILO HE Driver
Settings and parameters editing are vital to the magneto-mechanical keyboard user experience. Every single parameter affecting the system performance is tweakable, and the tweaks are visible in the Dashboard UI in real-time as they take effects, such as the per-key rapid-trigger/sensitivity annotations on the keyboard preview. Global configurations can be saved as layers, to be fired up later.
Theme color exclusive driver
We designed 5 UI interfaces for the Driver.
You can choose a UI interface that matches your keyboard theme.
Aluminum Plate
Being the second structural keyboard design to accommodate magneitc switches, just like our Victory 67 HE, our laser focus on travel accuracy leads to the elimination of a large number of popular structrual choices, such as the famously soft gasket mount and PC/POM plates. The now severely constrained solution space revolves around the aluminum plate and tray mount, and compels us to make bold choices to preserve the sound quality.
Tray Mount with 15 screws
Silicone paddings and wraps placed around mounting screws and other frame and plate contact points, helps producing a gasket mount like sound consistency, and none of its deformation induced errors.
Sound engineering on sound foundations.
It is just two porons with one aluminum plate sandwiched, plus one silicone anechoic sheet. There is no secret here, as clear as the sound the keyboard makes. Yet you wonder why you haven't heard a sound like this from another magnetic keyboard?
Dual-rail gunners
A dual-rail magnetic switch created with a new generation of tooling and prelubing, Gateron's Magnetic White is miles ahead of other magnetic switches in both the feel and sound. Of course, the Magnetic Jade switch, the industry standard for high performance and consistency is also available as an option.
-
Gateron Dual-rail Magnetic White
- Linear
- Dual-rail structure
Initial Force: 30 ± 7gf
End Force: 50 ± 7gf
Actuation Range: 0.10-4.00mm
Lifespan: 150 million clicks
-
Gateron Magnetic Jade Pro
Get it here- Linear
- Excellent typing sound
Initial Force: 36 ± 5gf
End Force: 50 ± 10gf
Actuation Range: 0.02-3.30mm
Lifespan: 150 million clicks
TECH SPECS
-
Model
Muse65: Wired; RGB Backlit; Hot-swappable
-
Specification
Layout: ANSI (ISO layouts coming soon)
N-key Rollover Support: Yes
Compatible System: MacOS/Windows
Driver System: Windows only.
Web Driver will be released in October.
Materials
Case: Full CNC Metal

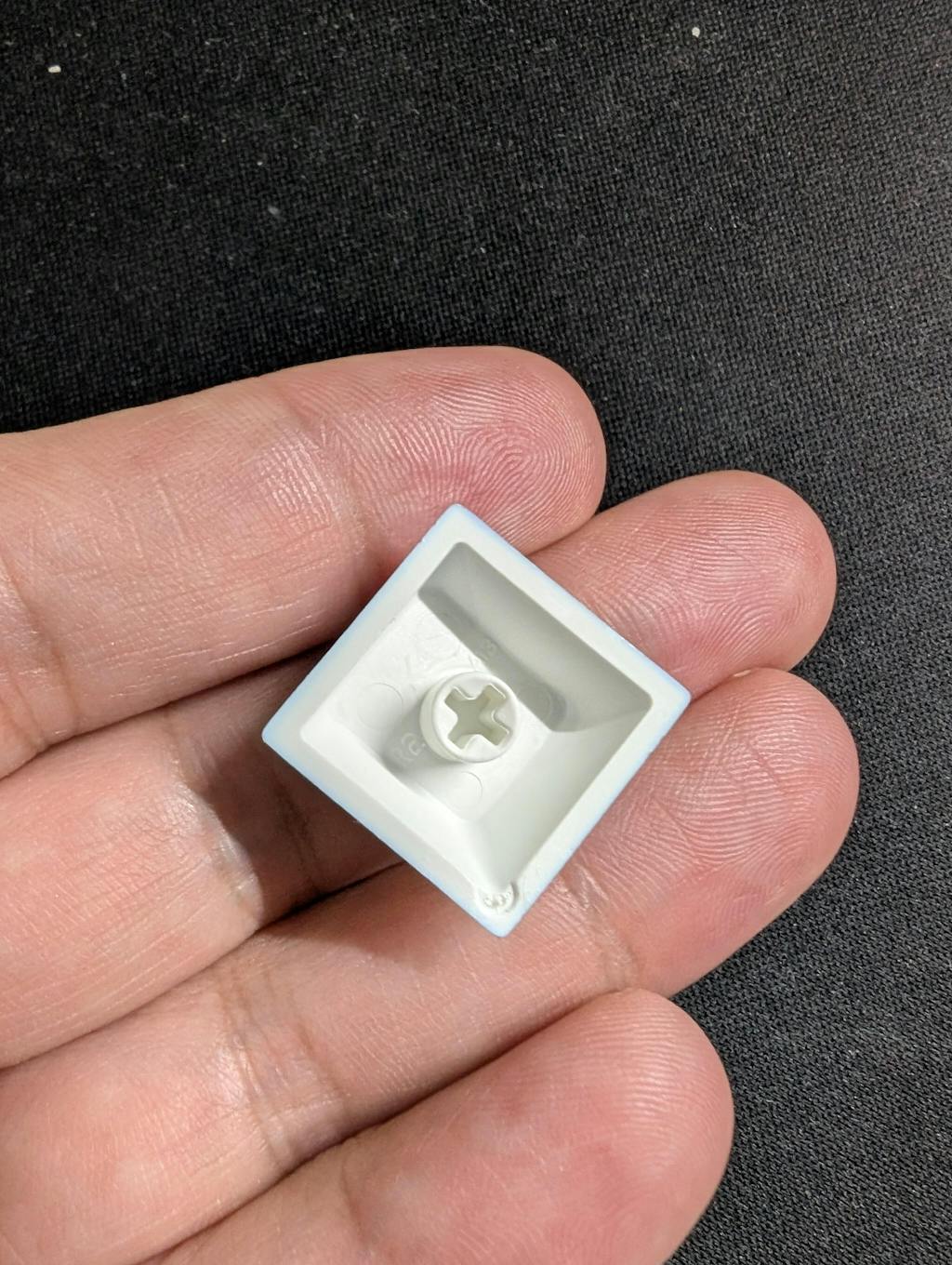

Keycap: PBT, Cherry Profile
Plate Material: Aluminum
Size
31*11.2*1.9cm
Angel: 6.5°

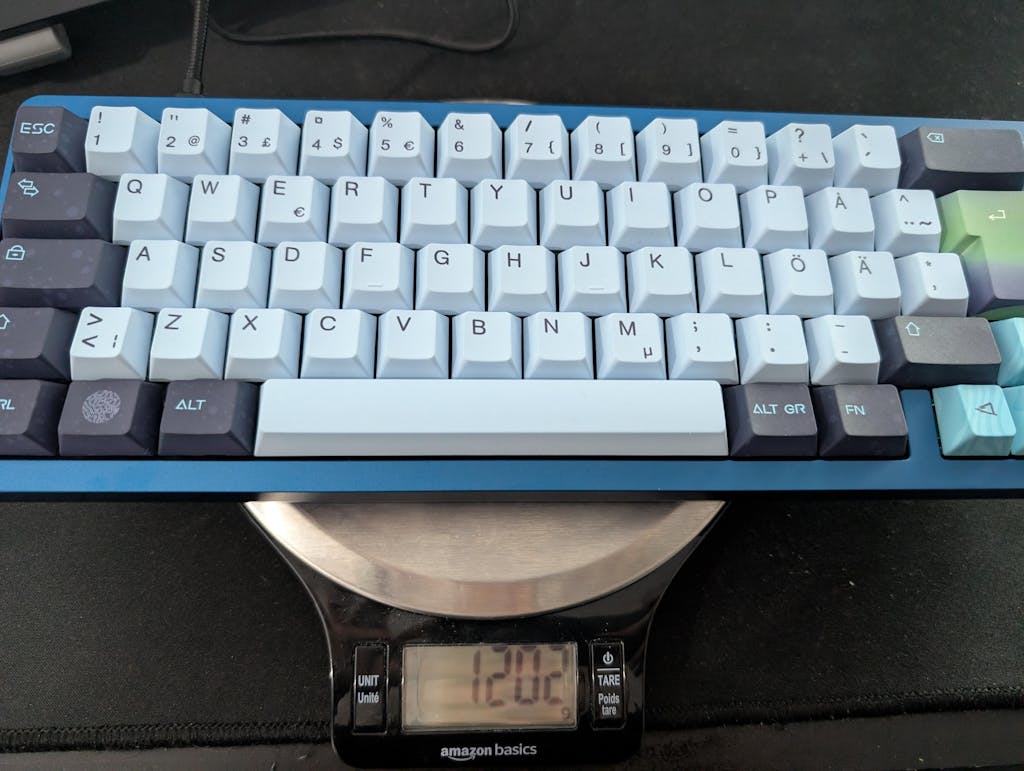

Weight
Net: 1.2KG
Gross: 2.05KG
HE Driver Functions:
Supports 4 custom layers
Supports customization of multimedia/RGB/macro keys, etc.
Supports custom range, minimum accuracy 0.02mm
Supports RT and DKS
Supports dead zone adjustment, minimum 0 dead zone
Supports bottoming protection
Supports manual calibration buttons, no need to calibrate all
Supports real-time display of key parameters
Supports theme switching, language selection, delay mode switching, polling rate switching, driver firmware update, etc.
-
In the Box
Box
Keyboard
Manual
Cable
Key puller/switch puller
-
Muse 65
Price
$155-168
Layout
ANSI
Keycap
PBT Dye-sub
Switch
Dual-rail Magnetic White
Magnetic Jade
-
Good quality product, I'm delighted with that aspect but the shipping times are very slow due to customs, extra costs (shipping, VAT, duties) are very exaggerated, from 160 euros to 307 euros in total. If the price is not a problem for you, it is a good option, but be careful with those surprises.
Add snaptap
Hi there! We appreciate your feedback and thank you for choosing Muse65 HE. We're glad to inform you that Snaptap is available for use with this product. Simply upgrade the driver to the latest firmware and you'll be able to enjoy Snaptap's features. Thank you for your support!
It’s very cool looking and sturdy
I love the look of this keyboard, it feels so unique and the build quality is amazing. Full aluminium body, keycaps are great and the typing feels so good. The software is where it is missing, the translation is not the best, it's missing some features, and they promissed a web software in october. I asked twice and haven't recieved an awnser about the release date.
Amazing keyboard, takes a little getting used to, but I love the sound and overall great quality
Muse65 HE
First, keyboard sound is nice for me, but firmware is not stable when I first use in the game play.
And it is still not stable.
When I enter an alphabet key, it does not respond when I enter a numeric key.
And I have to press it two or three more times to recognize it.
If varmilo can fix this, it will be very good keyboard for gaming.
Thank you for your feedback. You can try to update the driver to the latest version and calibrate all the keys. If the problem is still not solved, please contact support@zhihaihe.cn
look i do research before i buy things bc i just hate buying smth and it not being up to my standards so i bought the muse65 HE and i was surprised at just HOW GOOD IT IS. It sounds amazing, feels amazing to type on (all i wanted to do was type after i got it), the keys have 0 latency, the rapid trigger is so useful in video games, it feels like a high quality keyboard (it’s heavy for a keyboard, like an aluminum case type of heavy), and it looks great (i got the asgard bc the font looked cool). In reality I wouldn’t recommend anyone any other keyboard (unless they don’t want a small keyboard lol but i need the desk space). I say buy it, I don’t think anyone would regret this purchase (again unless you want a bigger keyboard and like your num pad).
I really like the somewhat quiet sound of the Gateron white switches. The design is great.
