Muse65 HE

Muse65 HE

Normale prijs $179.00 USD
Normale prijs Aanbiedingsprijs $179.00 USD
Aanbieding Uitverkocht
Verzendkosten worden berekend bij de checkout.
Theme
Switch
Layout

18 op voorraad

HE Driver

Update time:

10/25/2024

Driver version: 1.0.0.10

Firmware version: 1.12

Muse65 Driver.zip

Muse65 Driver.exe

Updates:

Optimize the data saving of 0.02mm Dead Zone



    Driver Installation

    1. Please choose your language to install.

    2. Before the driver installation concludes, an environment setup program will appear, as shown in the screenshot below. If this is your first time installing the driver, please click "Confirm Installation." Upon completion, a success notification will be displayed.

    3. After the initial driver installation, upon the first connection, the driver will automatically detect the firmware version and prompt you to update. Please select the appropriate firmware update for the corresponding layout version.
    4. Please select the appropriate firmware update for the corresponding layout version.
    5. After installing the driver, it is necessary to calibrate the keyboard, and the corresponding position is indicated in the figure below.

      The calibration keyboard operation is to long press the button.green indicates successful calibration, while yellow indicates calibration failure. For the initial calibration, ensure all keys are calibrated to green.

      After completing the calibration, you can click the calibration button to exit thcalibration. Then it can be used normally.

    6. The firmware and driver can be upgraded directly through the firmware update button in the driver.

    Q: How to change the Driver layout?

    A: Open the driver, unplug the cable, hold the ESC key, and plug the cable



    Troubleshooting:

    1:Unable to use the driver to upgrade the firmware normally;
    The driver is stuck in the firmware upgrade interface;
    The latest version is still not available after the upgrade

    Please try this:

    Open the driver, unplug the cable, hold the ESC key, and plug the cable



    2:Can't change backlit;

    Light are reds

    Please calibrate the keys, then you can change the backlit.

    Shipping Policy



    VAT or import tax included?

    Due to the customs policy of different destinations, we CANNOT guarantee if there is a tax for you. Our product price does not include VAT or import tax of your shipping destination. Please let us know if the customs reach out for anything, we may provide our suggestion if possible.

    European Union VAT

    If you are located in the European Union, and your product amount is under €150, we will charge the VAT when you place an order.

    Then there is no more tax needed.

    If your order amount is over €150, then the local Customs will charge customs duties and VAT.

    If you have any questions, please contact us.



    Where do you ship from?

    • We ship from China.
    • Some SKUs will be shipped from the US.

         (Minilo75% Bluebell & Retro)



    What countries do you ship to?

    • Varmilo uses DHL Express to ship the orders.
    • We ship to countries that DHL Express services.
    • Shipping rates will show when you enter a shipping address on the Checkout page.

      When can I receive my order?

      • In-stock items usually take 2-5 working days by DHL Express.
      • Pre-sale items will have an estimated delivery time marked on the product page.



      Payment Method

      • Paypal and Credit Card



      Can I cancel the order or change the product?

      • Yes, unshipped orders can be canceled and product or delivery information can be modified.

      Can I change the delivery address of my package after it has been shipped out?

      • Unfortunately, we cannot change the shipment once the product is en route.
      • But you can contact DHL to change the address.

      Limited Stock!

      Get it now!

      The Magnetic Jade Switch has been upgraded to the Magnetic Jade Switch Pro.

      The feel has been improved, the sound is better, and the performance is more stable.



      ISO-Swedish will be shipped in late November.

      Alle details bekijken

      Muse 65 HE Metal Keyboard - Best choice for FPS Players

      5 Theme Design

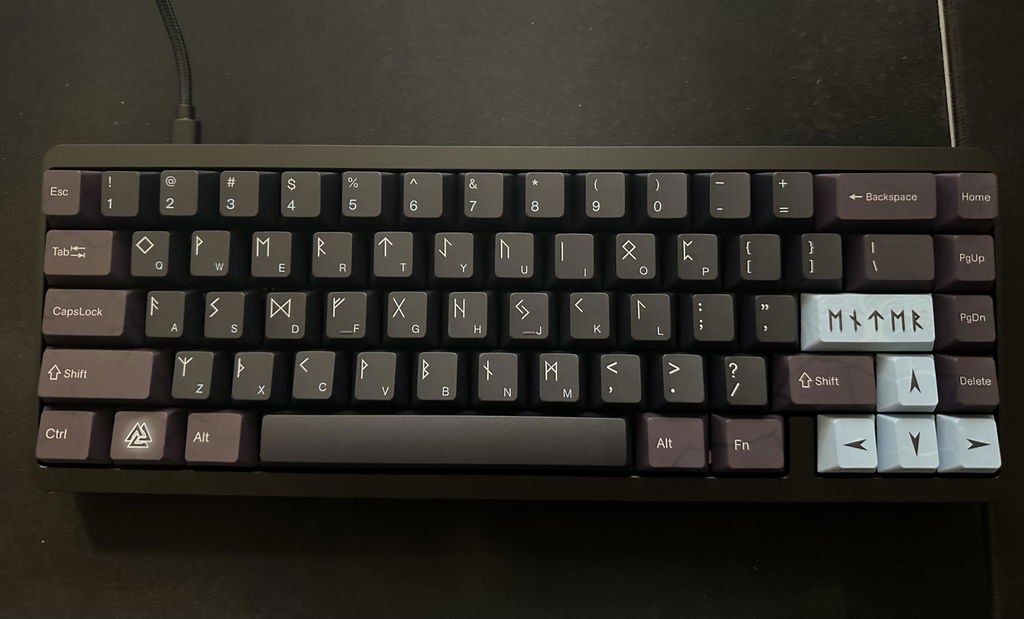

      The artworks of natural elements (Ariel, Aurora, Sakura, & Summit ) and Viking style (Asgard).

      5 different styles are reflected in the keycaps, metal case and glass plate weight, each one looks great.

      With a Fully CNC Metal Case, it feels stable and slightly cool to the touch, delicate and silky, like jade.
      If you touch it with your fingertips, you will feel its difference.

      Magnetic

      Why a magnetic keyboard?

      An average human’s reaction time is 300-500ms, while a pro gamer can reach 200ms through training. The total trip time for a key press to register after the finge-cap contact can however easily reach >100 ms, much of it spent on the key descending to the actuation point. A magnetic switch cuts this trip by half by separating the process of actuation, accomplished at the speed of light through the Hall effect, from the tactile feedback, which can take as long as you want afterward to assure your finger of its occurrence. And if you are drawn to extreme performance, then the infamous rapid trigger mode is definitely for you.

      Accurate to 0.02mm

      0.10mm, 4.00mm, or exactly 0.02 mm...with both high dynamic range and travel resolution Muse65 got your back whether you want to be the fastest gun in the West or tune your rhythm in sync with that particular spell's cooldown timer.

      RT

      Rapid Trigger

      Ready for the next move before the impact of the first even strikes the enemy? Just 0.1mm of break and your trusted companion will get it done, and done again...and again. Under the rapid trigger mode, Muse65 HE can handle even the most complex maneuvering that you can come up with so seamlessly and effortlessly like it is an extension of your nerve system or something.

      DKS

      Dynamic Keystroke

      High precision and minimized errors also enable true analog input, as you can now pack a recorded amount of information and up to 4 actions in one stroke. Combos, spellcastings, and macros….can all become chords in the music that follows your finger, whose tempo you will decide among 2 positions out of 40 in the press, and another 2 in the release.

      SOCD

      Back-cover input
      Enhance key priority, upon key release, automatically trigger the previous key, achieving flawless quick-stop functionality.

      Latency

      as low as 0.2ms

      The switches are only half of the story, every component in the signal’s pathway from the switch must run reliably at an even higher speed to fully unleash its potential. The requirements are staggering, the specs of the hardware even more so: 8000Hz polling rate and only 0.2ms of total latency from the key activation to its registering….

      RGB

      5 independent Hall Effect chips

      Many little, subtle things need to be gotten right before a mere 0.02mm of change in travel can be properly resolved, not just detected. Even slight vibrations can cause big deviations in readings, and so do disturbances in the baseline voltage.
      In Muse65 HE, not only did we design the Tray mounting structure, the electronics, and the error-controlling process for every component all around the need to reduce errors and inter-key inconsistencies, but the assembly and testing in the supply chain also need to be managed accordingly.
      The <0.01mm error produced by the whole approach makes fine-tuning the actuation distance useful for the users for the first time.

      RGB and HE coexist

      The race to a lower latency starts when the transverse voltage builds up in the Hall effect sensors, individually packaged and powered from the LEDs they retain their sensitivity even when the RGB effects are maxed out. Similar arrangments at the end of the signals' journey ensure the MCU is at full throttle handling their arrivals, utilizing a self-developed filtering algorithm that picks them at industry-leading accuracy and speed.

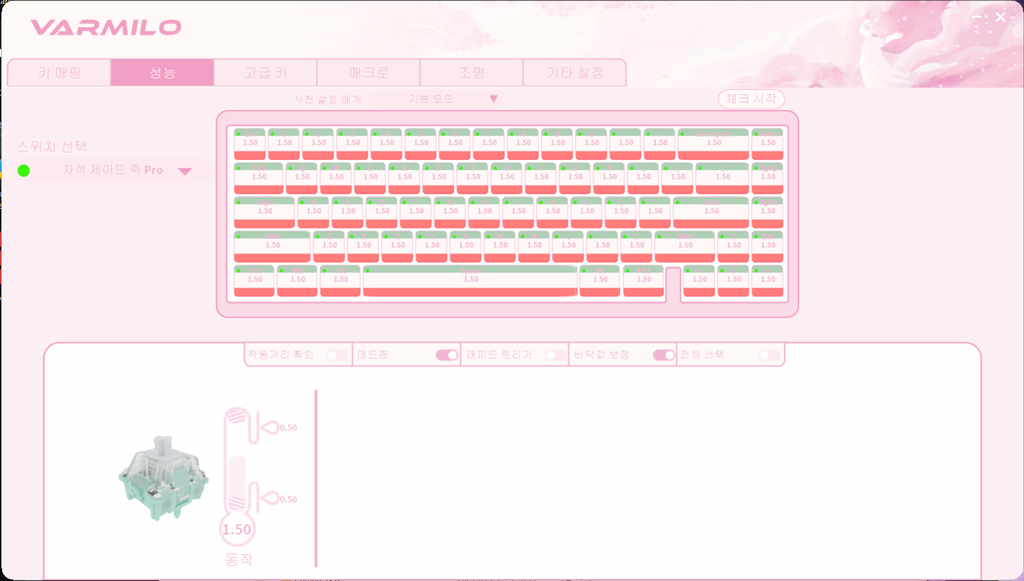

      VARMILO HE Driver

      Settings and parameters editing are vital to the magneto-mechanical keyboard user experience. Every single parameter affecting the system performance is tweakable, and the tweaks are visible in the Dashboard UI in real-time as they take effects, such as the per-key rapid-trigger/sensitivity annotations on the keyboard preview. Global configurations can be saved as layers, to be fired up later.

      Theme color exclusive driver

      We designed 5 UI interfaces for the Driver.
      You can choose a UI interface that matches your keyboard theme.

      TYPING FEEL

      Aluminum Plate

      Being the second structural keyboard design to accommodate magneitc switches, just like our Victory 67 HE, our laser focus on travel accuracy leads to the elimination of a large number of popular structrual choices, such as the famously soft gasket mount and PC/POM plates. The now severely constrained solution space revolves around the aluminum plate and tray mount, and compels us to make bold choices to preserve the sound quality.

      TYPING FEEL

      Tray Mount with 15 screws

      Silicone paddings and wraps placed around mounting screws and other frame and plate contact points, helps producing a gasket mount like sound consistency, and none of its deformation induced errors.

      TYPING FEEL

      Sound engineering on sound foundations.

      It is just two porons with one aluminum plate sandwiched, plus one silicone anechoic sheet. There is no secret here, as clear as the sound the keyboard makes. Yet you wonder why you haven't heard a sound like this from another magnetic keyboard?

      MAGNETIC SWITCHES

      Dual-rail gunners

      A dual-rail magnetic switch created with a new generation of tooling and prelubing, Gateron's Magnetic White is miles ahead of other magnetic switches in both the feel and sound. Of course, the Magnetic Jade switch, the industry standard for high performance and consistency is also available as an option.

      • Gateron Dual-rail Magnetic White

        • Linear
        • Dual-rail structure

        Initial Force: 30 ± 7gf

        End Force: 50 ± 7gf

        Actuation Range: 0.10-4.00mm

        Lifespan: 150 million clicks

      • Gateron Magnetic Jade Pro

        • Linear
        • Excellent typing sound

        Initial Force: 36 ± 5gf

        End Force: 50 ± 10gf

        Actuation Range: 0.02-3.30mm

        Lifespan: 150 million clicks

        Get it here
      • Model

        Muse65: Wired; RGB Backlit; Hot-swappable

      • Specification

        Layout: ANSI (ISO layouts coming soon)

        N-key Rollover Support: Yes

        Compatible System: MacOS/Windows

        Driver System: Windows only.

        Web Driver will be released in October.

        Materials

        Case: Full CNC Metal

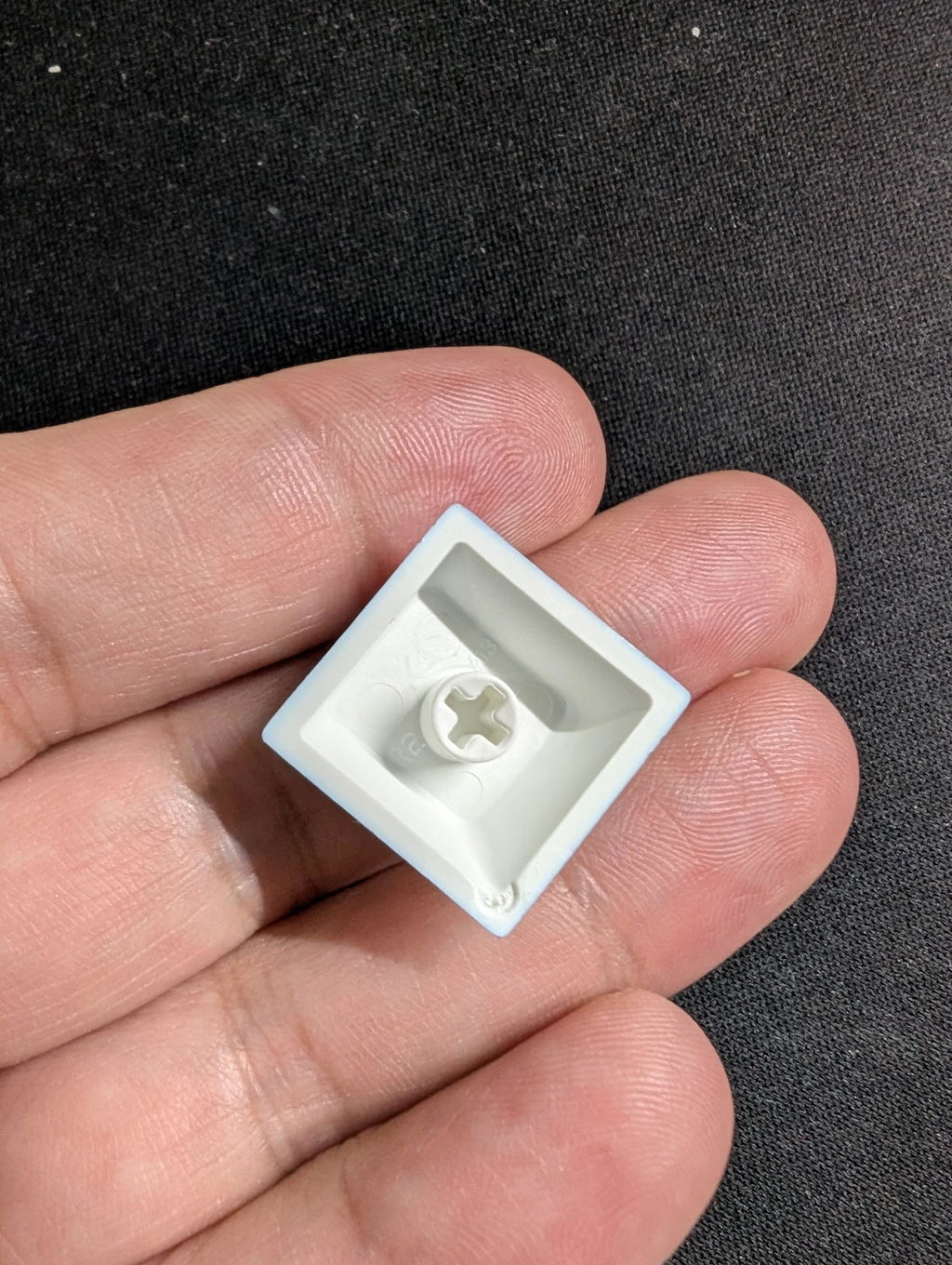

        Keycap: PBT, Cherry Profile

        Plate Material: Aluminum

        Size

        31*11.2*1.9cm

        Angel: 6.5°

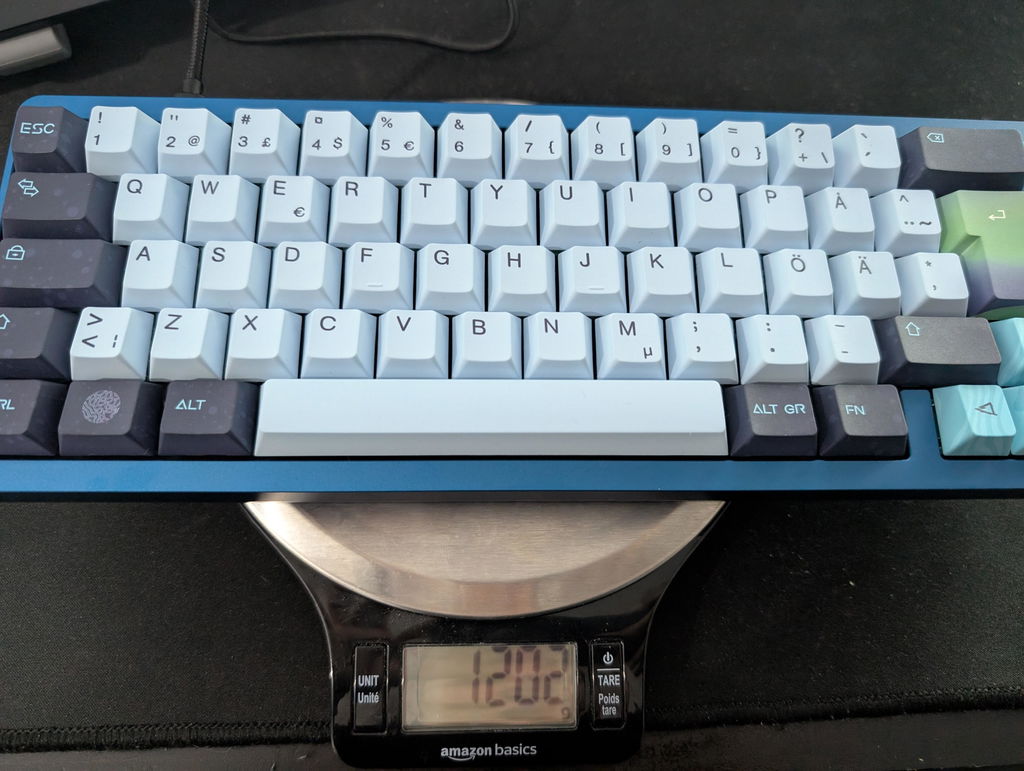

        Weight

        Net: 1.2KG

        Gross: 2.05KG

        HE Driver Functions:

        Supports 4 custom layers

        Supports customization of multimedia/RGB/macro keys, etc.

        Supports custom range, minimum accuracy 0.02mm

        Supports RT and DKS

        Supports dead zone adjustment, minimum 0 dead zone

        Supports bottoming protection

        Supports manual calibration buttons, no need to calibrate all

        Supports real-time display of key parameters

        Supports theme switching, language selection, delay mode switching, polling rate switching, driver firmware update, etc.

      • In the Box

        Box

        Keyboard

        Manual

        Cable

        Key puller/switch puller
